geovista.geodesic

Provide geodesic operators for geolocated meshes.

ノート

Added in version 0.1.0.

属性

BBOX_C	The bounding-box face geometry will contain BBOX_C**2 cells.
BBOX_OUTSIDE	Preference for selecting sample points outside/inside bounding-box.
BBOX_RADIUS_RATIO	Ratio the bounding-box inner and outer faces are offset from the surface mesh.
BBOX_TOLERANCE	The bounding-box tolerance on intersection.
Corners	Type alias for the corners of a bounding-box.
ELLIPSE	Default geodesic ellipse. See pyproj.list.get_ellps_map().
GEODESIC_NPTS	Number of equally spaced geodesic points between/including end-point/s.
N_PANELS	The number of cubed-sphere panels.
PANEL_BBOX_BY_IDX	Cubed-sphere panel bounding-box longitudes and latitudes.
PANEL_IDX_BY_NAME	Lookup table for cubed-sphere panel index by panel name.
PANEL_NAMES	Cubed-sphere panel names.
PANEL_NAME_BY_IDX	Lookup table for cubed-sphere panel name by panel index.
PREFERENCE	The default bounding-box preference.

Classes

BBox	A 3D bounding-box constructed from geodesic lines or great circles.
EnclosedPreference	Enumeration of mesh geometry enclosed preferences.

Functions

line(lons, lats, *[, surface, radius, npts, ellps, ...])	Geodesic line consisting of one or more connected geodesic line segments.
npoints(start_lon, start_lat, end_lon, end_lat, *[, ...])	Calculate geodesic mid-points between provided start and end points.
npoints_by_idx(lons, lats, start_idx, end_idx, *[, ...])	Calculate geodesic mid-points between provided start and end indices.
panel(name, /, *[, ellps, c, triangulate])	Create boundary-box for specific cubed-sphere panel.
wedge(lon1, lon2, *[, ellps, c, triangulate])	Create geodesic bounding-box manifold wedge from the north to the south pole.

モジュール内容

class geovista.geodesic.BBox(xs, ys, *, crs=WGS84, ellps=ELLIPSE, c=BBOX_C, triangulate=False)

A 3D bounding-box constructed from geodesic lines or great circles.

Create 3D geodesic bounding-box to extract enclosed mesh, lines or point.

The bounding-box region is specified in terms of its four corners using coordinates defined by the projection crs (defaults to geovista.crs.WGS84). As the bounding-box is a geodesic composed of great-circle lines, it can only ever at most enclose half of an ellipsoid.

The geometry of the bounding-box may be specified as either an open or closed point geometry i.e., 4 or 5 corner values.

Parameters:

xsArrayLike

The x-coordinates of the bounding-box in canonical crs units. Note that longitudes will be wrapped to the half-closed interval [-180, 180).

ysArrayLike

The y-coordinates of the bounding-box in canonical crs units. Note that latitudes are in the closed interval [-90, 90].

crsstr, optional

The Coordinate Reference System of the provided xs and ys. Defaults to geovista.crs.WGS84.

ellpsstr, optional

The ellipsoid for geodesic calculations. See pyproj.list.get_ellps_map(). Defaults to ELLIPSE.

cfloat, optional

The bounding-box face geometry will contain c**2 cells. Defaults to BBOX_C.

triangulatebool, optional

Specify whether the bounding-box faces are triangulated. Defaults to False.

ノート

Added in version 0.1.0.

__call__(surface)

Extract region of the surface contained within the bounding-box.

Parameters:

surfacePolyData

The PolyData mesh to be checked for containment.

Returns:

PolyData

The PolyData representing those parts of the provided surface enclosed by the bounding-box.

参考

enclosed

Equivalent method.

outside

Property that selects points inside/outside manifold.

preference

Property that specifies criterion for surface cell inclusion.

tolerance

Property that controls manifold intersection tolerance.

ノート

Added in version 0.6.0.

__eq__(other)

Perform an equality comparison with the other operand.

Parameters:

otherobject

Equality comparison performed with this operand.

Returns:

bool

Equality comparison result.

ノート

Added in version 0.1.0.

__hash__()

Support hash-based collections.

Returns:

int

The computed hash() value of the instance.

ノート

Added in version 0.6.0.

__ne__(other)

Perform an inequality comparison with the other operand.

Parameters:

otherobject

Inequality comparison performed with this operand.

Returns:

bool

Inequality comparison result.

ノート

Added in version 0.1.0.

__repr__()

Serialize BBox representation.

Returns:

str

String representation of the instance.

ノート

Added in version 0.1.0.

boundary(surface=None, *, radius=None)

Footprint of bounding-box intersecting on the provided mesh surface.

The region of the bounding-box that intersects on the surface of the mesh that will be enclosed.

Parameters:

surfacePolyData, optional

The PolyData mesh that will be enclosed by the bounding-box boundary.

radiusfloat, optional

The radius of the spherical mesh that will be enclosed by the bounding-box boundary. Note that the radius is only used when the surface is not provided. Defaults to geovista.common.RADIUS.

Returns:

PolyData

The boundary of the bounding-box.

ノート

Added in version 0.1.0.

Examples

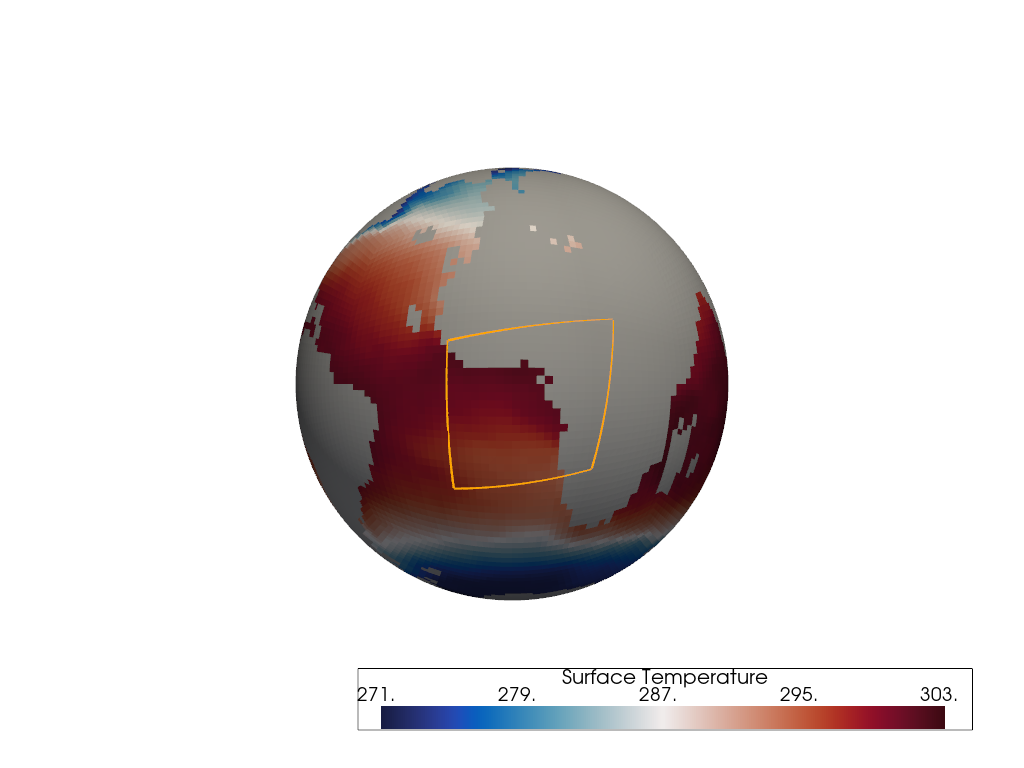

Add the boundary of a C32 bounding-box to the plotter for a region around the Gulf of Guinea. The geodesic bounding-box is generated by defining 4 longitude-latitude corners.

The boundary is generated from where the bounding-box intersects with the surface of the C48 Sea Surface Temperature (SST) cubed-sphere mesh.

>>> import geovista
>>> from geovista.geodesic import BBox
>>> from geovista.pantry.meshes import lfric_sst
>>> p = geovista.GeoPlotter()
>>> mesh = lfric_sst()
>>> _ = p.add_mesh(mesh, cmap="balance")
>>> bbox = BBox(xs=[-15, 20, 25, -15], ys=[-25, -20, 15, 10], c=32)
>>> _ = p.add_mesh(bbox.boundary(mesh), color="orange", line_width=3)
>>> p.view_yz()
>>> p.show()

Static Scene

Interactive Scene

enclosed(surface, /, *, tolerance=None, outside=None, preference=None)

Extract region of the surface contained within the bounding-box.

Note that points that are on the surface of the bounding-box manifold are not considered within the bounding-box. See the preference and tolerance options.

Parameters:

surfacePolyData

The PolyData mesh to be checked for containment.

tolerancefloat, optional

The tolerance on the intersection operation with the surface, expressed as a fraction of the diagonal of the bounding-box. See select_interior_points() for further details. Defaults to BBOX_TOLERANCE.

outsidebool, optional

By default, select those points of the surface that are inside the bounding-box. Otherwise, select those points that are outside the bounding-box. Defaults to BBOX_OUTSIDE.

preferencestr or EnclosedPreference, optional

Criteria for defining whether a face of a surface mesh is deemed to be enclosed by the bounding-box. A preference of cell requires all points defining the face to be within the bounding-box. A preference of center requires that only the face cell center is within the bounding-box. A preference of point requires at least one point that defines the face to be within the bounding-box. Defaults to PREFERENCE.

Returns:

PolyData

The PolyData representing those parts of the provided surface enclosed by the bounding-box. This behaviour may be inverted with the outside parameter.

ノート

Added in version 0.1.0.

Examples

Add the boundary of a C32 bounding-box to the plotter for a region around the Gulf of Guinea. The geodesic bounding-box is generated by defining 4 longitude-latitude corners.

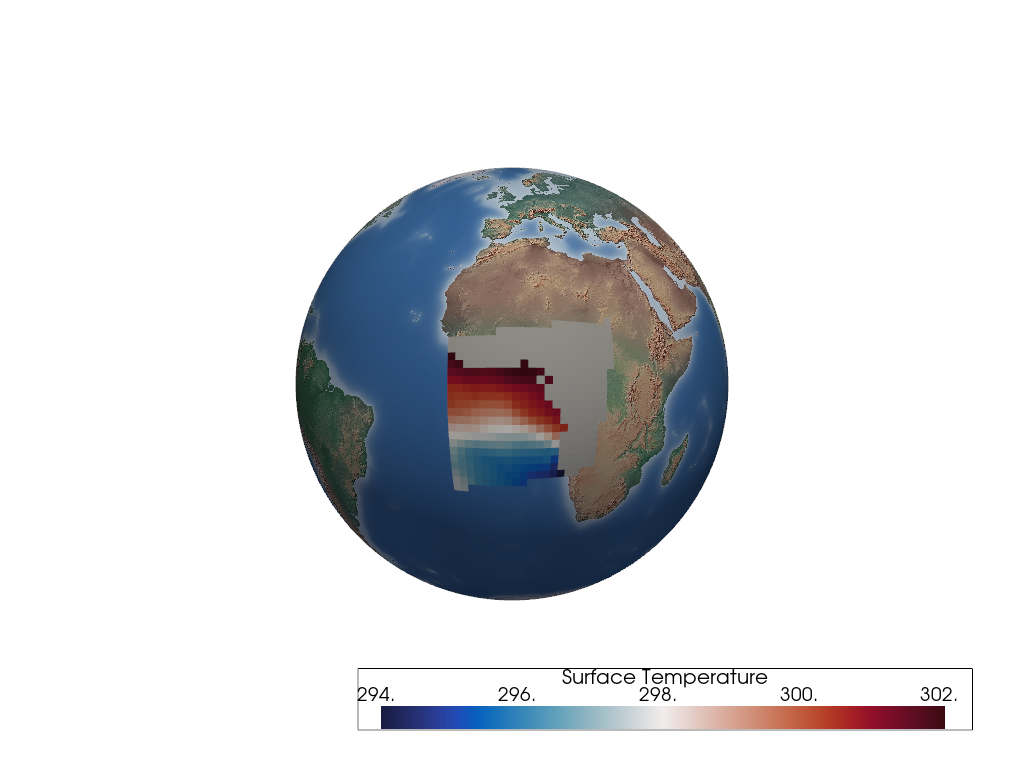

Add the region enclosed by a C32 bounding-box manifold to the plotter for a region around the 0 meridian. The geodesic bounding-box is generated by defining 4 longitude-latitude corners.

The region is generated from all cells of the C48 Sea Surface Temperature (SST) cubed-sphere mesh that have their cell center enclosed by the bounding-box manifold.

>>> import geovista
>>> from geovista.geodesic import BBox
>>> from geovista.pantry.meshes import lfric_sst
>>> p = geovista.GeoPlotter()
>>> _ = p.add_base_layer(texture=geovista.natural_earth_hypsometric())
>>> mesh = lfric_sst()
>>> bbox = BBox(xs=[-15, 20, 25, -15], ys=[-25, -20, 15, 10], c=32)
>>> region = bbox.enclosed(mesh)
>>> _ = p.add_mesh(region, cmap="balance")
>>> p.view_yz()
>>> p.show()

Static Scene

Interactive Scene

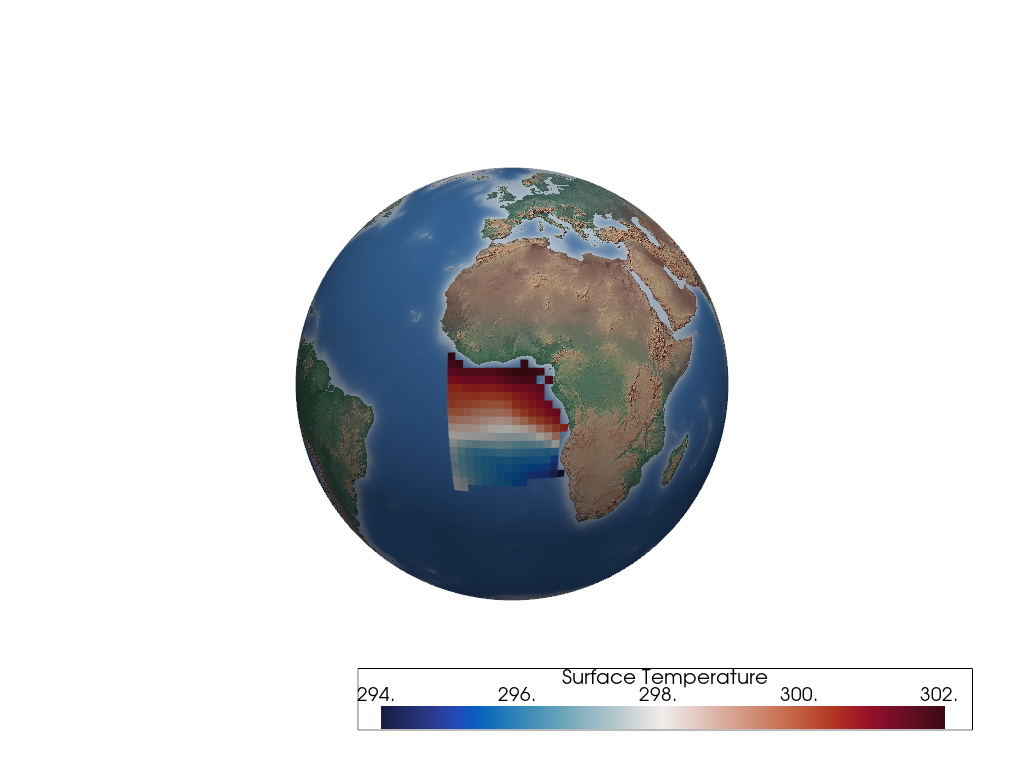

The same region is rendered again, but with the land mask cells removed using the pyvista.DataSetFilters.threshold() filter.

>>> p = geovista.GeoPlotter()
>>> _ = p.add_base_layer(texture=geovista.natural_earth_hypsometric())
>>> _ = p.add_mesh(region.threshold(), cmap="balance")
>>> p.view_yz()
>>> p.show()

Static Scene

Interactive Scene

c = 256

The number of cells that define the bounding-box face geometry i.e., c^2.

crs

The coordinate reference system of the bounding-box points.

ellps = 'WGS84'

The ellipsoid defining the geodesic surface.

property mesh: pyvista.PolyData

The manifold bounding-box mesh.

Returns:

PolyData

The bounding-box mesh.

ノート

Added in version 0.1.0.

Examples

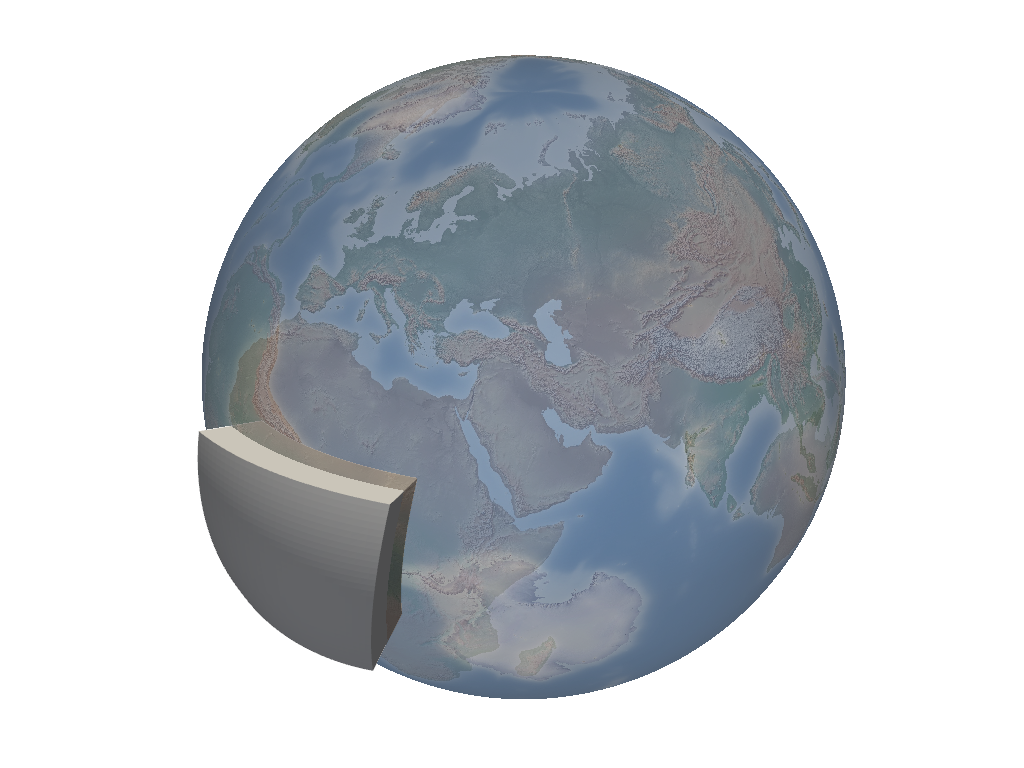

Add a C32 bounding-box around the Gulf of Guinea. The geodesic bounding-box is generated by defining 4 longitude-latitude corners. Natural Earth coastlines are also rendered along with a texture mapped Natural Earth base layer.

>>> import geovista
>>> from geovista.geodesic import BBox
>>> p = geovista.GeoPlotter()
>>> _ = p.add_base_layer(
...     texture=geovista.natural_earth_hypsometric(), opacity=0.5
... )
>>> bbox = BBox(xs=[-15, 20, 25, -15], ys=[-25, -20, 15, 10], c=32)
>>> _ = p.add_mesh(bbox.mesh, color="white")
>>> p.camera.zoom(1.5)
>>> p.show()

Static Scene

Interactive Scene

property outline: pyvista.PolyData

The manifold bounding-box mesh edges.

Returns:

PolyData

The bounding-box mesh edges.

ノート

Added in version 0.6.0.

Examples

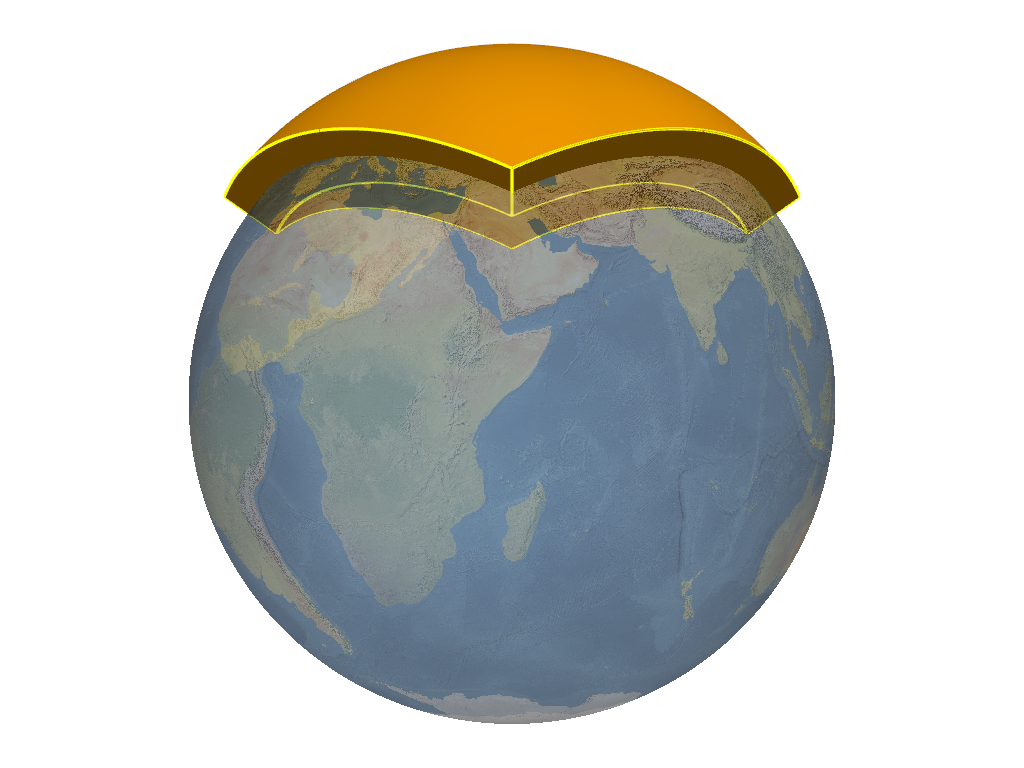

Add the geodesic bounding-box manifold for the Arctic cubed-sphere panel along with its edges. A texture mapped Natural Earth base layer is also rendered.

>>> import geovista
>>> from geovista.geodesic import panel
>>> p = geovista.GeoPlotter()
>>> _ = p.add_base_layer(texture=geovista.natural_earth_1(), opacity=0.5)
>>> bbox = panel("arctic")
>>> _ = p.add_mesh(bbox.mesh, color="orange")
>>> _ = p.add_mesh(bbox.outline, color="yellow", line_width=3)
>>> p.view_vector(vector=(1, 1, 0))
>>> p.camera.zoom(1.5)
>>> p.show()

Static Scene

Interactive Scene

property outside: bool

The preference to select points outside/inside the bounding-box.

Returns:

bool

Manifold bounding-box selection preference.

ノート

Added in version 0.6.0.

property preference: EnclosedPreference

The criterion for cell containment within the bounding-box.

Returns:

EnclosedPreference

The bounding-box enclosed preference.

ノート

Added in version 0.6.0.

property tolerance: float

The tolerance of the bounding-box manifold intersection.

See select_interior_points() for further details.

Returns:

float

The bounding-box manifold intersection tolerance.

ノート

Added in version 0.6.0.

triangulate = False

Whether the bounding-box faces are triangulated.

xs

The x points of the bounding-box in canonical CRS units.

ys

The y points of the bounding-box in canonical CRS units.

class geovista.geodesic.EnclosedPreference

Bases: geovista.common.StrEnumPlus

Enumeration of mesh geometry enclosed preferences.

ノート

Added in version 0.3.0.

Initialize self. See help(type(self)) for accurate signature.

CELL = 'cell'

Enclosed if all cell vertices within bounding-box manifold.

CENTER = 'center'

Enclosed if cell center within bounding-box manifold.

POINT = 'point'

Enclosed if at least one cell vertex within bounding-box manifold.

geovista.geodesic.line(lons, lats, *, surface=None, radius=None, npts=None, ellps=None, close=False, zlevel=None, zscale=None)

Geodesic line consisting of one or more connected geodesic line segments.

Note that as a convenience, if a single value is provided for lons and N values are provided for lats, then the longitude value will be automatically repeated N times, and vice versa, providing N >= 2.

Parameters:

lonsArrayLike

The longitudes (degrees) of the geodesic line segments, in the half-closed interval [-180, 180). Note that longitudes will be wrapped to this interval.

latsArrayLike

The latitudes (degrees) of the geodesic line segments, in the closed interval [-90, 90].

surfacePolyData, optional

The surface that the geodesic line will be rendered over.

radiusfloat, optional

The radius of the spherical surface that the geodesic line will be rendered over. Note that the radius is only used when the surface is not provided. Defaults to geovista.common.RADIUS.

nptsfloat, optional

The number of equally spaced geodesic points in a line segment, excluding the segment end-point, but including the segment start-point i.e., npts must be at least 2. Defaults to GEODESIC_NPTS.

ellpsstr, optional

The ellipsoid for geodesic calculations. See pyproj.list.get_ellps_map(). Defaults to ELLIPSE.

closebool, optional

Whether to close the geodesic line segments into a loop i.e., the last point is connected to the first point. Defaults to False.

zlevelint, optional

The z-axis level. Used in combination with the zscale to offset the radius by a proportional amount i.e., radius * zlevel * zscale. Defaults to 1.

zscalefloat, optional

The proportional multiplier for z-axis zlevel. Defaults to geovista.common.ZLEVEL_SCALE.

Returns:

PolyData

The geodesic line.

ノート

Added in version 0.1.0.

Examples

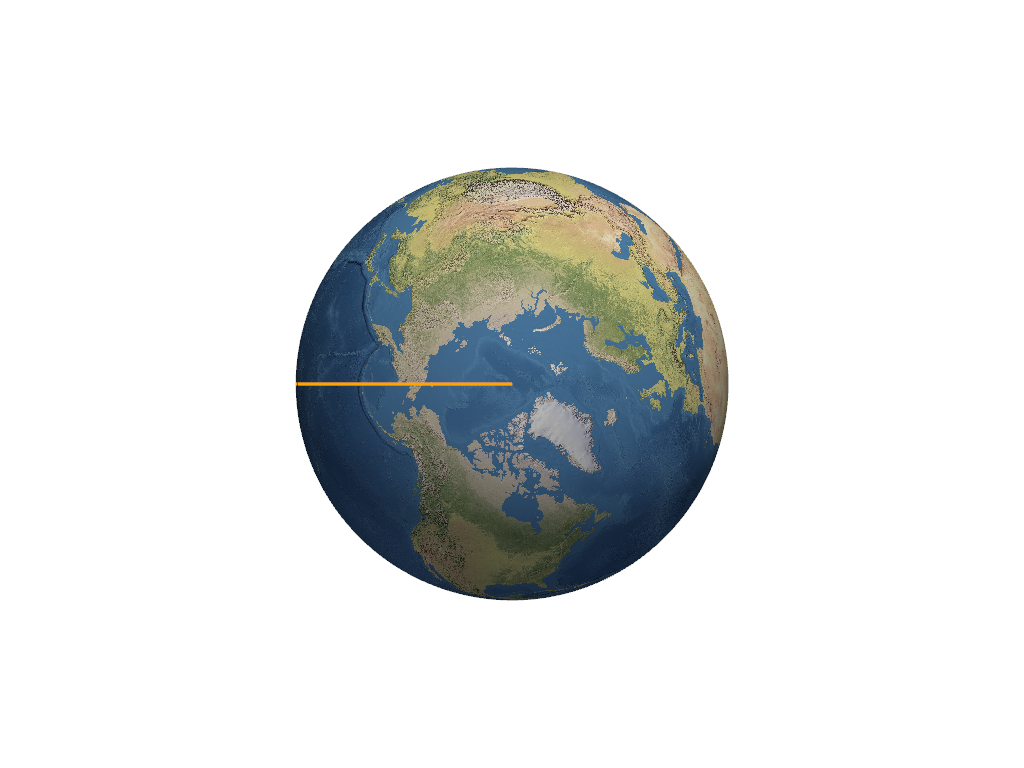

Add the anti-meridian great circle to the plotter. A texture mapped Natural Earth base layer is also rendered.

>>> import geovista
>>> from geovista.geodesic import line
>>> p = geovista.GeoPlotter()
>>> _ = p.add_base_layer(texture=geovista.natural_earth_1())
>>> meridian = line(lons=-180, lats=[90, 0, -90])
>>> _ = p.add_mesh(meridian, color="orange", line_width=3)
>>> p.view_xy()
>>> p.show()

Static Scene

Interactive Scene

geovista.geodesic.npoints(start_lon, start_lat, end_lon, end_lat, *, npts=GEODESIC_NPTS, radians=False, include_start=False, include_end=False, geod=None)

Calculate geodesic mid-points between provided start and end points.

Given a single start-point and end-point, calculate the equally spaced intermediate longitude and latitude npts points along the geodesic line that spans between the start and end points.

Note that longitudes (degrees) will be wrapped to the half-closed interval [-180, 180).

Parameters:

start_lonfloat

The longitude of the start-point for the geodesic line.

start_latfloat

The latitude of the start-point for the geodesic line.

end_lonfloat

The longitude of the end-point for the geodesic line.

end_latfloat

The latitude of the end-point for the geodesic line.

nptsint, optional

The number of points to be returned, which may include the start-point and/or the end-point, if required. Defaults to GEODESIC_NPTS.

radiansbool, optional

If True, the start and end points are assumed to be in radians, otherwise degrees. Defaults to False.

include_startbool, optional

Whether to include the start-point in the geodesic points returned. Defaults to False.

include_endbool, optional

Whether to include the end-point in the geodesic points returned. Defaults to False.

geodGeod, optional

Definition of the ellipsoid for geodesic calculations. Defaults to ELLIPSE.

Returns:

tuple

Tuple of longitude points and latitude points along the geodesic line between the start-point and the end-point.

ノート

Added in version 0.1.0.

Examples

>>> from geovista.geodesic import npoints
>>> import numpy as np
>>> points = npoints(start_lon=-10, start_lat=20, end_lon=10, end_lat=30, npts=5)
>>> np.array(points, dtype=np.float16)
array([[-6.887, -3.69 , -0.41 ,  2.963,  6.43 ],
       [21.84 , 23.62 , 25.34 , 26.98 , 28.53 ]], dtype=float16)

geovista.geodesic.npoints_by_idx(lons, lats, start_idx, end_idx, *, npts=GEODESIC_NPTS, radians=False, include_start=False, include_end=False, geod=None)

Calculate geodesic mid-points between provided start and end indices.

Given a single start-point index and end-point index, calculate the equally spaced intermediate longitude and latitude npts points along the geodesic line that spans between the start and end points.

Note that longitudes (degrees) will be wrapped to the half-closed interval [-180, 180).

Parameters:

lonsArrayLike

The longitudes to be sampled by the provided indices.

latsArrayLike

The latitudes to be sampled by the provided indices.

start_idxint

The index of the start-point.

end_idxint

The index of the end-point.

nptsint, optional

The number of points to be returned, which may include the start-point and/or the end-point, if required. Defaults to GEODESIC_NPTS.

radiansbool, optional

If True, the lons and lats are assumed to be in radians, otherwise degrees. Defaults to False.

include_startbool, optional

Whether to include the start-point in the geodesic points returned. Defaults to False.

include_endbool, optional

Whether to include the end-point in the geodesic points returned. Defaults to False.

geodGeod, optional

Definition of the ellipsoid for geodesic calculations. Defaults to ELLIPSE.

Returns:

tuple

Tuple of longitude points and latitude points along the geodesic line between the start-point and the end-point.

ノート

Added in version 0.1.0.

Examples

>>> from geovista.geodesic import npoints_by_idx
>>> import numpy as np
>>> points = npoints_by_idx(
...     lons=[-10, 0, 10], lats=[20, 25, 30], start_idx=0, end_idx=1, npts=5
... )
>>> np.array(points, dtype=np.float16)
array([[-8.38 , -6.746, -5.09 , -3.414, -1.718],
       [20.88 , 21.73 , 22.58 , 23.4  , 24.22 ]], dtype=float16)

geovista.geodesic.panel(name, /, *, ellps=ELLIPSE, c=BBOX_C, triangulate=False)

Create boundary-box for specific cubed-sphere panel.

Parameters:

nameint or str

The cubed-sphere index, see PANEL_NAME_BY_IDX, or name, see PANEL_IDX_BY_NAME, which specifies the panel bounding-box, see PANEL_BBOX_BY_IDX.

ellpsstr, optional

The ellipsoid for geodesic calculations. See pyproj.list.get_ellps_map(). Defaults to ELLIPSE.

cfloat, optional

The bounding-box face geometry will contain c**2 cells. Defaults to BBOX_C.

triangulatebool, optional

Specify whether the panel bounding-box faces are triangulated. Defaults to False.

Returns:

BBox

The bounding-box that encloses the required cubed-sphere panel.

ノート

Added in version 0.1.0.

Examples

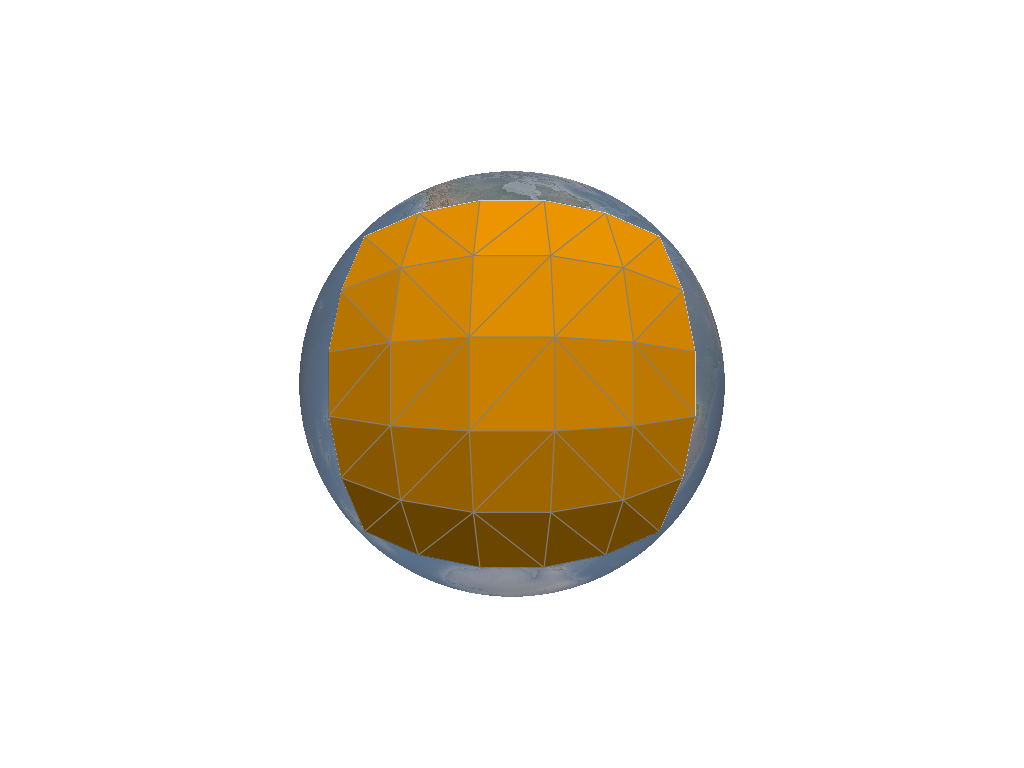

Add a wireframe bounding-box to the plotter for the americas panel of a cubed-sphere. The geodesic bounding-box is generated from the 4 corners of the cubed-sphere panel located over Americas. A texture mapped Natural Earth base layer is also rendered.

>>> import geovista
>>> from geovista.geodesic import panel
>>> p = geovista.GeoPlotter()
>>> _ = p.add_base_layer(texture=geovista.natural_earth_hypsometric(), opacity=0.5)
>>> bbox = panel("americas", c=5, triangulate=True)
>>> _ = p.add_mesh(bbox.mesh, color="orange", show_edges=True)
>>> p.view_xz()
>>> p.show()

Static Scene

Interactive Scene

geovista.geodesic.wedge(lon1, lon2, *, ellps=ELLIPSE, c=BBOX_C, triangulate=False)

Create geodesic bounding-box manifold wedge from the north to the south pole.

Parameters:

lon1float

The first longitude (degrees) defining the geodesic wedge region.

lon2float

The second longitude (degrees) defining the geodesic wedge region.

ellpsstr, optional

The ellipsoid for geodesic calculations. See pyproj.list.get_ellps_map(). Defaults to ELLIPSE.

cfloat, optional

The bounding-box face geometry will contain c**2 cells. Defaults to BBOX_C.

triangulatebool, optional

Specify whether the wedge bounding-box faces are triangulated. Defaults to False.

Returns:

BBox

The bounding-box that encloses the required geodesic wedge.

ノート

Added in version 0.1.0.

Examples

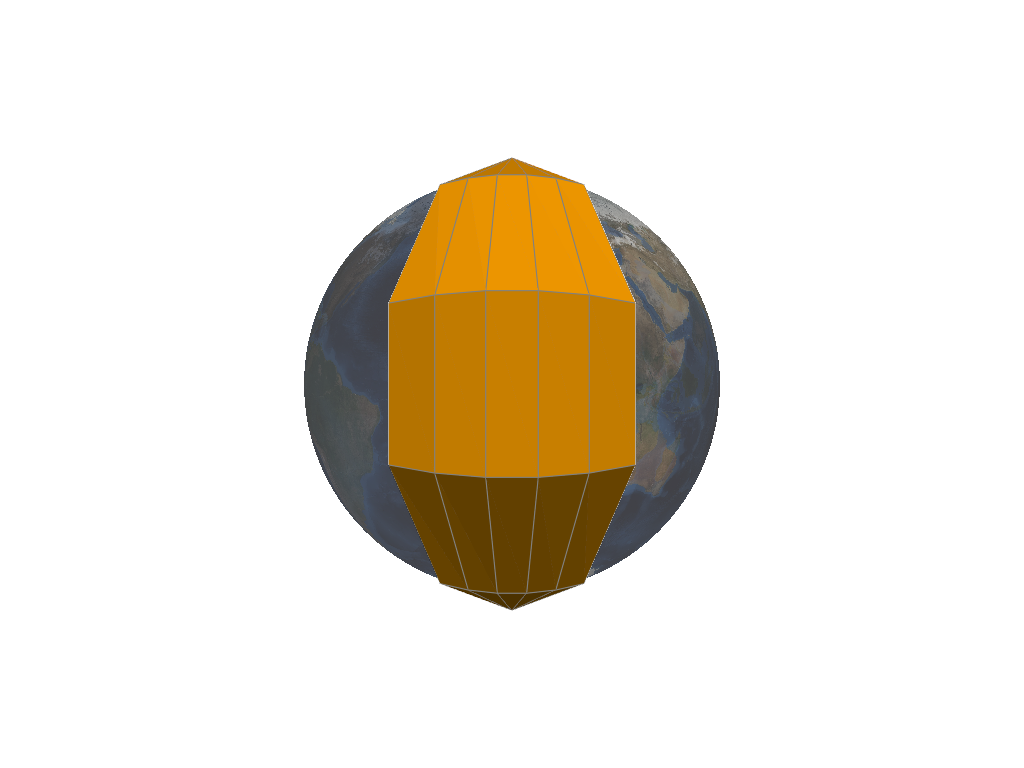

Add a C8 sixty-degree wide wireframe bounding-box wedge to the plotter. A texture mapped NASA Blue Marble base layer is also rendered.

>>> import geovista
>>> from geovista.geodesic import wedge
>>> p = geovista.GeoPlotter()
>>> _ = p.add_base_layer(texture=geovista.blue_marble(), opacity=0.5)
>>> bbox = wedge(-30, 30, c=5)
>>> _ = p.add_mesh(bbox.mesh, color="orange", show_edges=True)
>>> p.view_yz()
>>> p.show()

Static Scene

Interactive Scene

geovista.geodesic.BBOX_C: int = 256

The bounding-box face geometry will contain BBOX_C**2 cells.

geovista.geodesic.BBOX_OUTSIDE: bool = False

Preference for selecting sample points outside/inside bounding-box.

geovista.geodesic.BBOX_RADIUS_RATIO: float = 0.1

Ratio the bounding-box inner and outer faces are offset from the surface mesh.

geovista.geodesic.BBOX_TOLERANCE: float = 1e-06

The bounding-box tolerance on intersection.

type geovista.geodesic.Corners = tuple[float, float, float, float]

Type alias for the corners of a bounding-box.

geovista.geodesic.ELLIPSE: str = 'WGS84'

Default geodesic ellipse. See pyproj.list.get_ellps_map().

geovista.geodesic.GEODESIC_NPTS: int = 64

Number of equally spaced geodesic points between/including end-point/s.

geovista.geodesic.N_PANELS: int = 6

The number of cubed-sphere panels.

geovista.geodesic.PANEL_BBOX_BY_IDX: dict[int, tuple[Corners, Corners]]

Cubed-sphere panel bounding-box longitudes and latitudes.

geovista.geodesic.PANEL_IDX_BY_NAME: dict[str, int]

Lookup table for cubed-sphere panel index by panel name.

geovista.geodesic.PANEL_NAMES: list[str] = ['africa', 'asia', 'pacific', 'americas', 'arctic', 'antarctic']

Cubed-sphere panel names.

geovista.geodesic.PANEL_NAME_BY_IDX: dict[int, str]

Lookup table for cubed-sphere panel name by panel index.

geovista.geodesic.PREFERENCE: str = 'center'

The default bounding-box preference.
